In the world of metalworking, fabrication, and general workshop maintenance, a pedestal grinder plays an indispensable role.
Fundamentally, a pedestal grinder is a powerful, stationary grinding machine mounted on a pedestal (or stand) and designed to shape, finish, or sharpen metal components with precision.
Its robust design and wide array of applications make it a staple in industrial settings, professional shops, and even serious home garages.

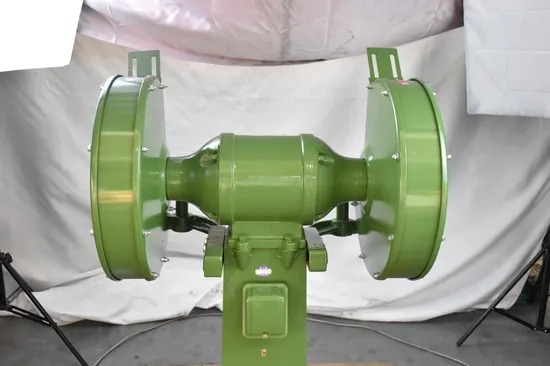

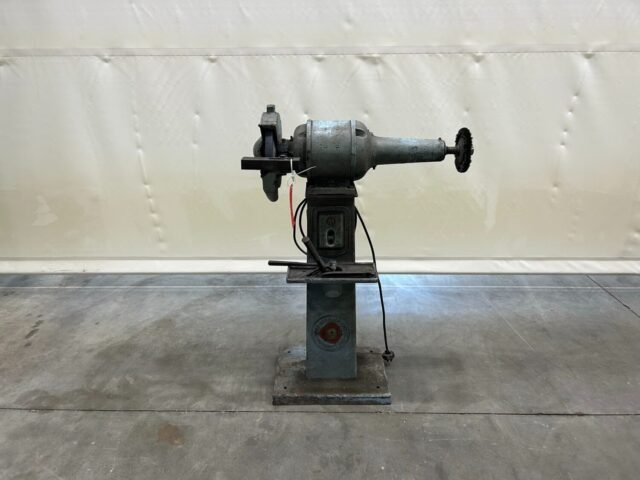

What Is a Pedestal Grinder?
A pedestal grinder consists of a high-speed rotating shaft that runs through the center of the machine, fitted with abrasive wheels or discs on either end.
These wheels are typically composed of bonded abrasives such as aluminum oxide, silicon carbide, or other compounds selected based on the required cutting or finishing performance.
The entire assembly is supported by a strong base or pedestal, cushioning the vibrations and ensuring stability during heavy-duty operations.
Many models include safety features like adjustable spark deflectors, adjustable tool rests, and wheel guards—essentials for safe and efficient operation.
Sizes vary widely, from small 6-inch wheel units to industrial-grade machines with wheels up to 20 inches or more, depending on the intended use.

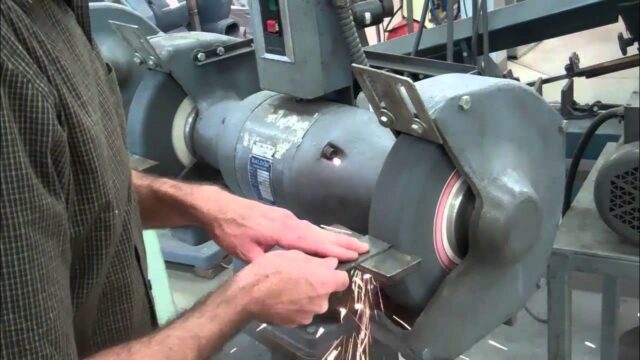

Typical Uses
Pedestal grinders excel at several tasks:
- Sharpening tools — Tools like chisels, drill bits, lathe tools, and blades regain their edge quickly, saving time and delivering consistent sharpness.
- Deburring and smoothing — Removing burrs, weld spatter, or rough edges from finished parts becomes fast and effective.
- Shaping and fitting — For metal parts that need slight adjustments or positioning, the grinder can remove small amounts of material to achieve a precise fit.
- Surface preparation — Before welding or painting, cleaning and prepping metal surfaces benefits greatly from a quick grinder pass.
Advantages Over Other Grinding Tools
- Stability and Power: Unlike handheld grinders, pedestal grinders are anchored to the floor, enabling extended use without operator fatigue.
- Precision and Control: With controlled speeds and built-in rests, users can maintain consistent angles and apply steady pressure.
- Versatility: Dual wheels with differing grits allow one coarse and one fine wheel on the same machine, offering flexibility for varied tasks.
- Efficiency: Ideal for frequent or heavy-duty use, these grinders drastically reduce manual effort and time compared to manual filing or sanding.
Safety and Best Practices
A pedestal grinder may appear simple, but misusing it can cause severe injuries. Follow these safety steps:
- Wear proper protection: Safety glasses or a full-face shield, gloves, and hearing protection are essential.
- Inspect the wheels: Before use, look for cracks, chips, or excessive wear and always perform a ring test on new wheels.
- Set the tool rest correctly: Keep it no more than 3mm (1/8″) from the wheel to prevent workpieces from slipping into the gap.
- Stand to one side when starting: When powering up, avoid standing directly in front of the rotating wheel to reduce risk from accidental wheel failure.
- Use steady pressure: Press evenly and avoid forcing parts against the wheel—too much pressure causes glazing, overheating, or wheel damage.
- Allow cooldown time: Grinding generates heat. Pause occasionally or use water cooling to prevent overheating workpieces.
Choosing the Right One
When selecting a pedestal grinder, consider:
- Wheel size — Choose wheels that suit your workspace and typical job size.
- Motor power and speed — Higher HP and RPM deliver faster material removal but may compromise control if excessive.
- Wheel material — Coarse, general-purpose wheels (e.g., aluminum oxide) are great for shaping, while finer silicon carbide or ceramic wheels offer smoother finishes.
- Optional extras — Look for models with built-in lighting, coolant trays, or quick-change wheel systems.
If you’re looking for a reliable source to view or purchase such equipment, check out this link to a trusted pedestal grinder provider: pedestal grinder
Conclusion
In short, a pedestal grinder is a powerful, dependable, and versatile tool for shaping, sharpening, and smoothing metal objects. From heavy-duty industrial fabrication to sharpening home workshop tools, its combination of stability, efficiency, and precision makes it a must-have machine in any serious workspace. With proper selection, setup, and safety awareness, it becomes a workhorse that enhances both productivity and accuracy—truly an investment worth considering.
